- Function: Connects two pneumatic tubes at a 90-degree angle, while reducing the tube size to accommodate different diameters.
- Material: Made from durable PBT (Polybutylene Terephthalate) housing with nickel-plated brass fittings, offering high strength and corrosion resistance.
- Design: Push-to-connect mechanism for quick and tool-free installation, allowing for secure and leak-proof connections.
- Usage: Ideal for pneumatic automation, air supply lines, air compressors, and industrial machinery where tube size reduction is required.
- Seal: Features an NBR (Nitrile Butadiene Rubber) O-ring for a leak-proof, airtight seal.
- Compatibility: Works with PU (Polyurethane), Nylon, and Polyethylene tubing.
- Working Pressure: Suitable for low to medium-pressure pneumatic systems up to 145 psi.

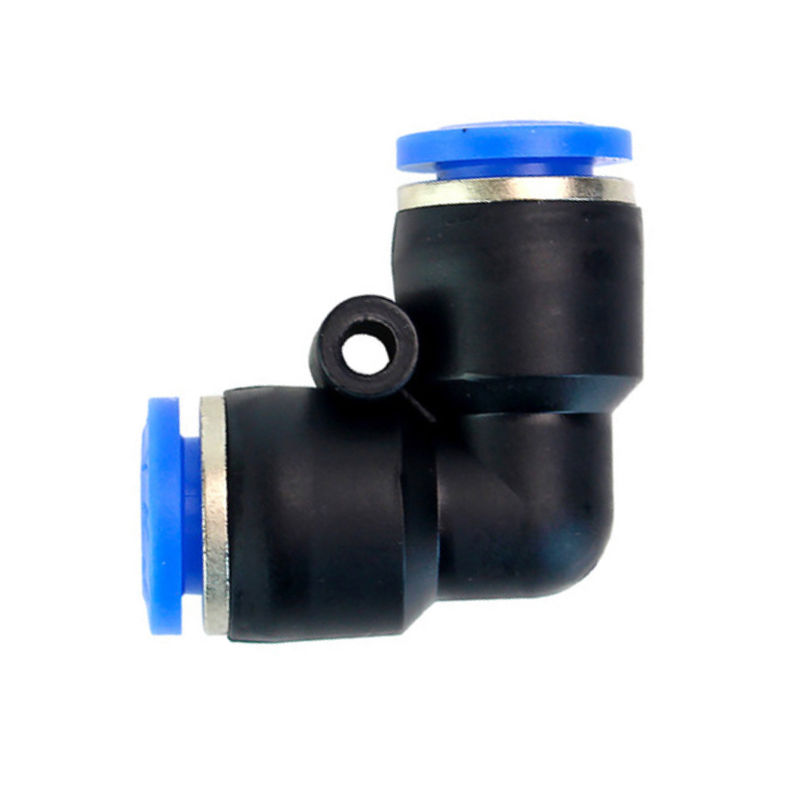

Union Pneumatic 90-Degree Elbow Push-In Fitting – Plug-In Reducer
| Fitting Type |
Union Pneumatic 90-Degree Elbow Push-In Fitting – Plug-In Reducer |
| Nominal Size |
Available in multiple tube size combinations |
| Design Structure |
Push-to-connect / Pull-release mechanism |
| Operating Pressure |
-13.8 to 145 psi |
| Temperature Range |
-10°C to 60°C (14°F to 140°F) |
| Operating Medium |
Compressed air (ISO8573-1:2010 [7:-:-]) |
| Lubrication |
Lubricated operation possible |
| Corrosion Resistance |
High corrosion resistance |
| Ambient Temperature |
32°F to 140°F (0°C to 60°C) |
| Color of Release Ring |
Blue |
| Regulatory Compliance |
RoHS-compliant |
| Material - Housing |
PBT (Polybutylene Terephthalate) |
| Material - Fittings |
Brass, Nickel-plated |
| Material - Release Ring |
POM (Polyoxymethylene) |
| Material - Tubing Seal |
NBR (Nitrile Butadiene Rubber) |
| Material - Retaining Claw |
High alloy non-corrosive steel |
