Introduction
Welcome to Jaaris, the global leader in low voltage motors. We proudly offer the most comprehensive range of high-performance motors, designed to meet your needs across various applications.
Three-Phase Motors
Our three-phase motors, ranging from 0.75 to 90 kW, are perfect for a wide array of uses. Whether you require direct mains operation or variable speed control with our advanced iASTAR VFDs, Jaaris motors deliver unparalleled efficiency and reliability.
Innovative Features
Jaaris motors are equipped with cutting-edge features such as optimized winding configurations and enhanced cooling systems. These innovations not only boost performance but also significantly reduce energy consumption, making our motors an excellent choice for sustainable operations.
Warranty
To further assure our commitment to quality and customer satisfaction, all our motors come with a 12-month warranty. Trust in Jaaris to deliver dependable, high-efficiency motors that power your success.

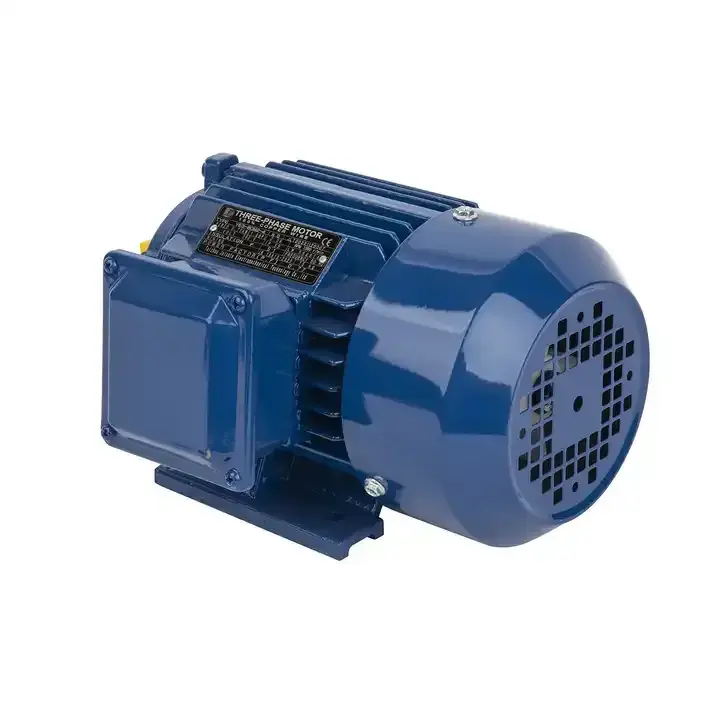

Three-Phase AC Electric Motor 380V 6POLE
PRODUCT INFO
SERVICES INCLUDE
| Specification | Details |
|---|---|
| Motor Type | Three-Phase AC Induction Motor |
| Power Range | 0.25 HP (0.18 kW) – 75 HP (55 kW) |
| Rated Voltage | 230V / 400V AC, 50Hz (Δ/Υ Connection) |
| Number of Poles | 6 Poles |
| Synchronous Speed | 1000 RPM @ 50Hz |
| Rated Speed | 930 – 980 RPM (depending on load & size) |
| Efficiency Class | IE2 / IE3 High Efficiency (IEC 60034-30) |
| Starting Method | Direct-On-Line (DOL) / Star-Delta (≥5.5kW) |
| Frame Size | 90 – 280 (Aluminum ≤132, Cast Iron ≥160) |
| Mounting Options | B3 (Foot), B5 (Flange), B14, or Combination |
| Torque Characteristics | Very high starting torque, smooth running at low speeds |
| Insulation Class | Class F (with Class B temperature rise) |
| Protection Class | IP55 (Standard), optional IP65 |
| Cooling Method | IC411 – Totally Enclosed Fan Cooled (TEFC) |
| Duty Type | S1 – Continuous Duty |
| Bearings | Deep groove ball bearings, pre-lubricated for long life |
| Ambient Temperature | –20°C to +50°C |
| Altitude | ≤1000m above sea level (special design available for higher altitudes) |
| Noise Level | ≤ 65 dB |
| Standards | IEC 60034, ISO 9001, CE Certified |
| Applications | Crushers, Mixers, Conveyors, Hoists, Heavy Machinery, Industrial Automation where low speed & high torque are required |
| Warranty | 12 Months Standard Warranty |
