MAL Cylinder – Pneumatic Air Cylinder
A lightweight mini pneumatic cylinder designed for reliable linear motion in compact applications. Features an aluminum body for corrosion resistance and efficient performance in automation systems.
How It Works
- Compressed air enters the cylinder chamber
- Pressure drives the piston, producing linear motion
- Double-acting design enables controlled extension and retraction
- Provides smooth and consistent operation for light-duty applications
Positioning
- MAL → mini, lightweight
- SC → heavy-duty
- ADVU/SDA → compact design

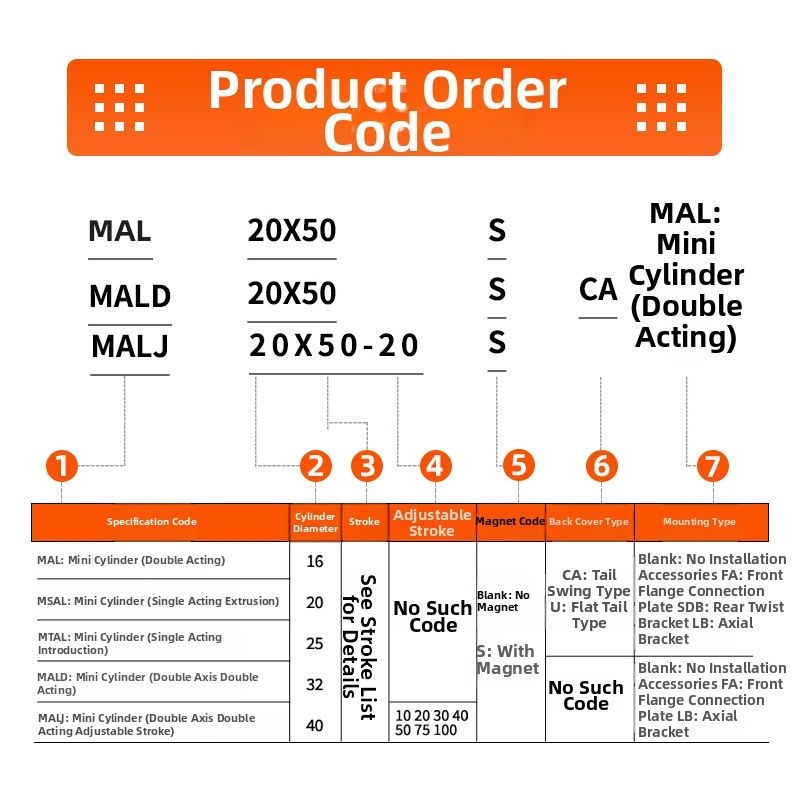

MAL Cylinder – Mini Pneumatic Air Cylinder
රු. 4,250.00Price
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Mini Pneumatic Cylinder (MAL Type) |
| Operation Type | Double-acting |
| Bore Sizes | Ø16 mm to Ø40 mm (model dependent) |
| Stroke Length | 25 mm to 500 mm (standard range) |
| Operating Pressure | 0.1 – 1.0 MPa (1 – 10 bar) |
| Proof Pressure | Up to 1.5 MPa (15 bar) |
| Mounting Type | Front / Rear / Foot mounting |
| Piston Rod Material | Stainless steel |
| Body Material | Aluminum tube |
| End Caps | Aluminum |
| Seals | NBR / PU |
| Cushioning | Fixed cushioning (model dependent) |
| Magnet | With magnet for sensor detection (optional) |
| Operating Temperature | -10°C to 60°C |
| Media | Filtered compressed air |
| Application | Light-duty linear motion |
| Typical Use Cases | Automation, packaging, small machinery, positioning tasks |
