Are you seeking the perfect solution to enhance your industrial automation and control systems?


Look no further than the LJ8A3-2-Z Inductive Proximity Sensor! Engineered with cutting-edge technology and unmatched reliability, this sensor is specifically designed to revolutionize your operations by detecting metallic objects with utmost precision and efficiency.


Operating on the principle of electromagnetic induction, these sensors excel at detecting the presence of metallic objects without physical contact. With a sensing range of up to 2mm, they offer remarkable sensitivity and accuracy, enabling precise detection and positioning tasks in industrial machinery, robotics, and automation systems.


Whether you're seeking to maximize productivity, reduce downtime, or achieve optimal operational efficiency, the LJ8A3-2-Z Series Inductive Proximity Sensor is the perfect solution for your industrial automation needs.

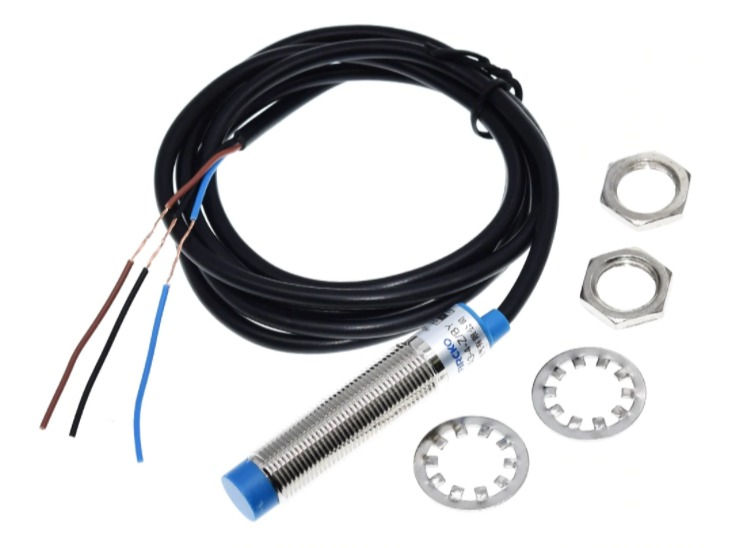

LJ8A3-2-Z Series Inductive Proximity Sensor

Technical Specifications
Sensing Distance 2mm
Diameter 8mm
Detection Metallic Objects
Operating Voltage 6-36V DC
Output Type



Operating Frequency 1000 Hz
Housing Material Nickel-plated brass
Connection Type 3-wire cable with M12 connector
Response Time 1 ms
Operating Temperature Range -25°C to +70°C
Protection Rating IP67
Mounting Type Non-flush mount
Voltage Drop at Full Load ≤3V
Leakage Current ≤0.8mA
Load Current ≤300mA
Hysteresis 10% of Sensing Distance
Repeat Accuracy ≤0.01mm
Indication LED Indicator
