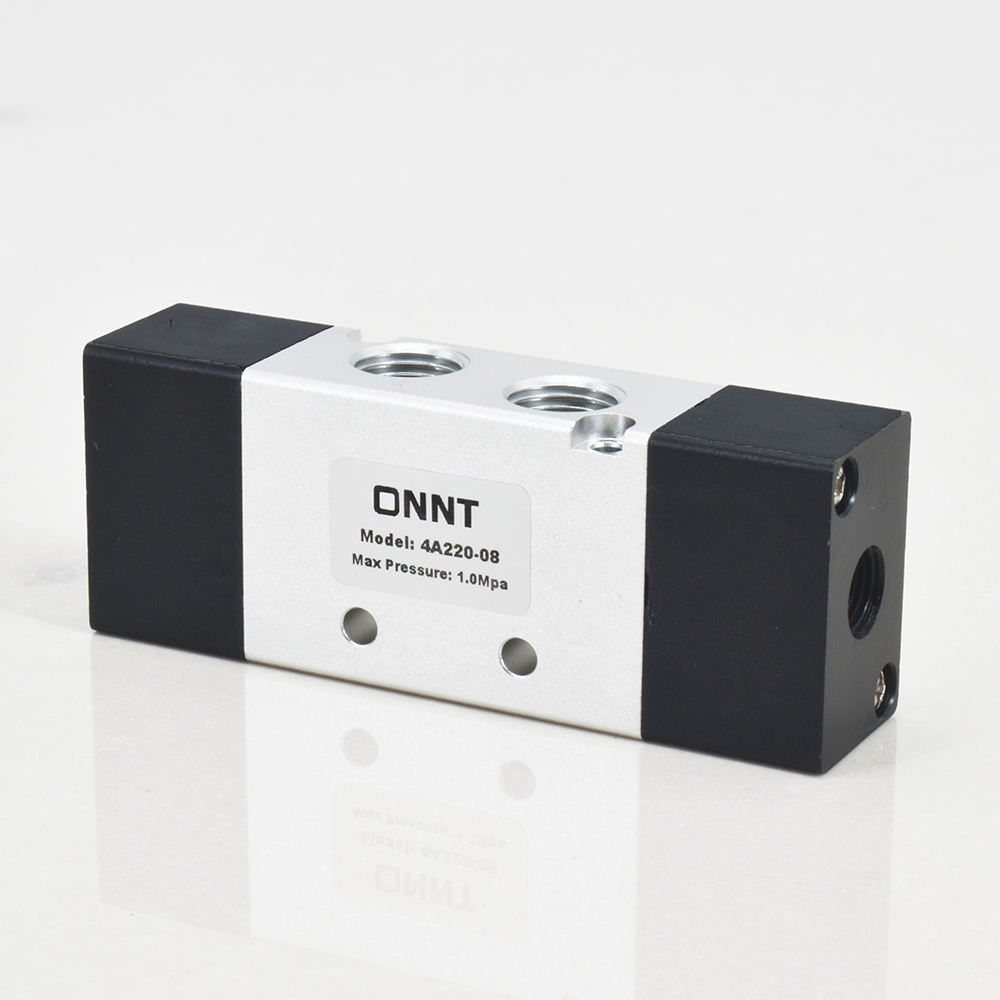

5/2 Way Pneumatic Double Pilot-Operated Valve
A pneumatically actuated directional control valve designed for reliable switching of airflow in double-acting systems. Utilizing dual pilot signals, it provides stable bi-stable operation without the need for electrical actuation.
How It Works
- 5 ports:
- P (Pressure/Inlet)
- A & B (Outputs)
- R & S (Exhausts)
- 2 positions (bi-stable):
- Pilot signal at port X → P connected to A, B exhausts
- Pilot signal at port Y → P connected to B, A exhausts
- Double pilot operation
- Valve remains in last position until opposite pilot signal is applied
- No spring return → memory function
5/2 Way Pneumatic Double Pilot-Operated Valve
රු. 4,500.00Price
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 5/2 Way Directional Control Valve (Double Pilot) |
| Valve Type | Pneumatically actuated directional valve |
| Ports | 5 ports (P, A, B, R, S) |
| Positions | 2 (bi-stable) |
| Actuation Type | Double pneumatic pilot |
| Operation Mode | Air-operated (no electrical input required) |
| Pilot Pressure Range | Typically 0.2 – 0.8 MPa (2 – 8 bar) |
| Operating Pressure | 0.15 – 0.8 MPa (1.5 – 8 bar) (up to 10 bar for some models) |
| Port Sizes | 1/8”, 1/4”, 3/8”, 1/2” |
| Thread Type | BSPT / NPT |
| Response Time | Fast switching |
| Body Material | Aluminum alloy / Engineering plastic |
| Seal Material | NBR / PU |
| Operating Temperature | -5°C to 60°C |
| Media | Filtered compressed air |
| Application | Control of double-acting cylinders |
| Typical Use Cases | Automation systems, pneumatic logic circuits, hazardous environments |
