16 Bar Pneumatic Air Regulator
A high-pressure regulator designed to maintain stable and precise downstream air pressure in pneumatic systems up to 16 bar. Ensures consistent performance and protects equipment from pressure fluctuations.
How It Works
- Compressed air enters the regulator inlet

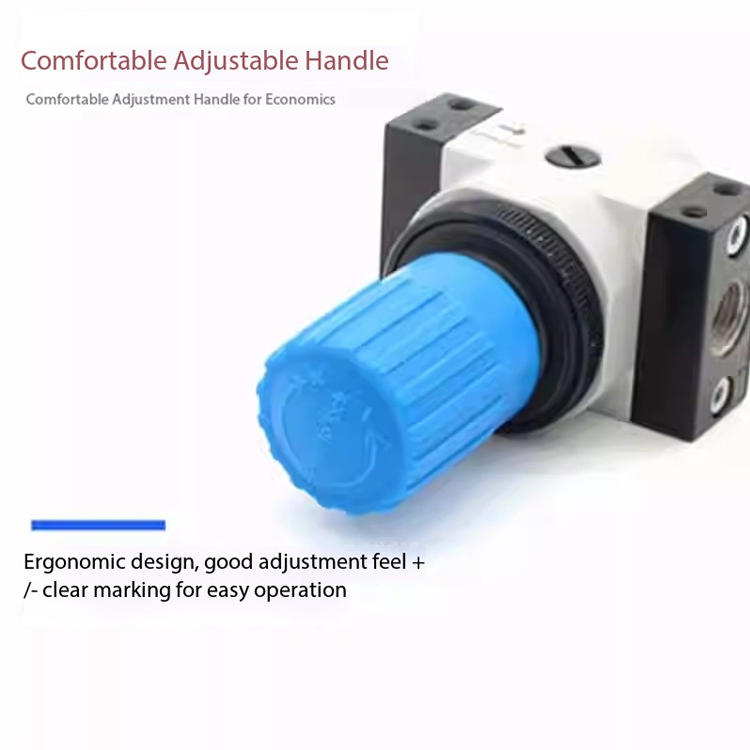

- Adjustment knob sets the desired outlet pressure
- Internal diaphragm and spring mechanism regulate pressure automatically
- Maintains constant output pressure regardless of supply variations
16 Bar Pneumatic Air Regulator
₨8,500.00Price
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Pneumatic Air Regulator (High Pressure) |
| Function | Pressure regulation |
| Operating Pressure | 0 – 1.6 MPa (0 – 16 bar) |
| Proof Pressure | Up to 2.0 MPa (20 bar) |
| Regulation Range | Typically 0.05 – 1.0 MPa (0.5 – 10 bar) (model dependent) |
| Port Sizes | 1/4”, 3/8”, 1/2”, 3/4”, 1” |
| Thread Type | BSPT / NPT |
| Pressure Gauge Port | Integrated (1/8” or 1/4”) |
| Mounting Type | Bracket / Panel mounting |
| Body Material | Aluminum alloy |
| Bowl Material | Polycarbonate (with guard) / Metal |
| Seal Material | NBR (Nitrile Rubber) |
| Operating Temperature | 5°C to 60°C |
| Media | Compressed air |
| Flow Characteristics | High flow capacity with stable output |
| Application | Pressure control in pneumatic systems |
| Typical Use Cases | Automation systems, compressors, industrial air supply, machinery control |
